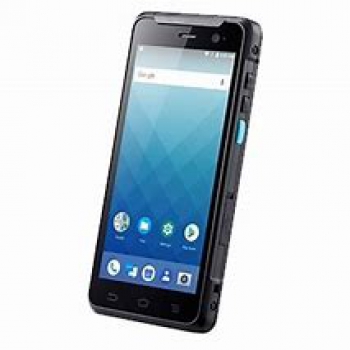

PA760

PA760 Specification

Operation System

  • OSAndroid 9
  • GMS certifiedGMS certified / EEA certified
  • CPU2.2 GHz, Qualcomm Snapdragon™ 660 Octa Core Processor, 64bits
  • Memory4 GB RAM / 64GB Flash
  • Languages supportEnglish, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian,
    Portuguese, Korean and multiple languages
  • OthersInput Chinese/ English
    Supports handwriting and soft keyboard

Display

  • Screen Size5.45” Color LCD 1440x720 High Resolution Display
  • TouchpanelGorilla Glass 3 with 5-point Capacitive Touch Panel,
    High sunlight visibility- LCD backlight up to 500nits with optical direct bounding

Buttons / Keypad

  • Buttons / KeypadProgrammable key, Volume up/down key, Left/right
    scan key, Power key

Camera

  • Camera5 MP Front camera
    16 MP Rear with LED flash and auto-focus function

Indicator Type

  • TypeLEDs, Vibrator

Symbologies

  • 1D Barcodes1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code
    128, Code 32, Code 93, Codabar/NW7, Interleaved 2
    of 5, Matrix 2 of 5, MSI, Trioptic,
  • 2D Barcodes2D : PDF417, MicroPDF417, GS1 Composite ,
    Code11, Aztec Code, Data Matrix, QR Code, Micro
    QR Code, MaxiCode, Han Xin Code, DOT Code

    Postal : Intelligent Mail Barcode, Postal-4i, Australian
    Post, Japanese Post, Netherlands (KIX) Post,
    Postnet, Planet Code

    OCR : OCR-A, OCR-B, E13B (MICR)

RFID

  • HF RFIDSupport HF/NFC
    Frequency 13.56Mhz
    Support: ISO14443A/B, ISO15693 standard

Communication

  • Bluetooth®Bluetooth® 5
  • WLANIEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6
    Security of WLAN : WEP, WPA/WPA2 PSK, 802.1x EAP,
    OWE, SAE
    Fast Roaming : PMKID caching, 802.11r, OKC
    MIMO(2x2)
  • WWAN4G LTE
    FDD: Band 1(2100), Band 2(1900), Band 3(1800),
    Band 4(1700), Band 5(850), Band 7(2600),
    Band 8(900), Band 17(700bc), Band 20(800),
    Band 28(700)
    TDD: Band 38(2600), Band 39(1900), Band 41(2500)
    *Support Dual Sim Dual 4G VoLTE (Nano SIM Slot*2)
  • GPSGPS/GLONASS/Gallileo/Beidou
  • SensorsGyroscope, G-sensor, E-compass, Light & Proximity Sensor
  • FingerprintFingerprint (optional)

I/O Interfaces

  • USBUSB Type-C
  • OTGYes, over USB Type-C
  • POGO PINPOGO PIN connector for Cradle
  • SIM SlotNano SIM Slot x 2
  • Expansion SlotMicro SD x 1, up to 128 GB
  • Audio1 W output ,95 dB at 10cm, Dual-Microphone, support noise cancellation

Enclosure

  • Weight163mm x 79.9mm x 17.4mm
  • Anti-microbial Housing300g (with standard battery)

Durability

  • Drop Specification1.5 meter without bumper
    1.8 meter with bumper
  • SealingIP67

Environmental

  • Operating temperature-4°F to 122°F (-20°C to 50°C)
  • Storage temperature-22°F to 140°F (-30°C to 60°C)
  • Relative Humidity5% ~ 95% (Non-Condensing)

Power Source

  • Main batteryStandard 4000mAh / battery with cover in one piece
  • Extended batteryExtended 6000mAh / battery with cover in one piece
    (optional)

Software

  • MDM SoftwareSOTI, AirWatch, 42Gears, 12Manage, and MoboLink

Regulatory Approvals

  • Regulatory ApprovalsCE, FCC, NCC, BSMI, VCCI, CCC, RoHS, CEC, BQB, GMS, N-Mark

Accessories

■ Hand Strap
■ Adapter (with US, EU, UK plugs)
■ USB type C cable
■ Tray Ejector tool
■ Bumper (by model selection)
■ 9H glass screen protector
■ 1-Slot Terminal & Battery Charging cradle
■ 1-Slot Ethernet cradle with USB host
■ 4-Slot Terminal Charging cradle
■ 4-Slot Ethernet cradle
■ 4-Slot battery charger
■ Standard gun grip
■ 2D long-range gun grip
■ UHF gun grip
■ Stylus & Coiled strap
