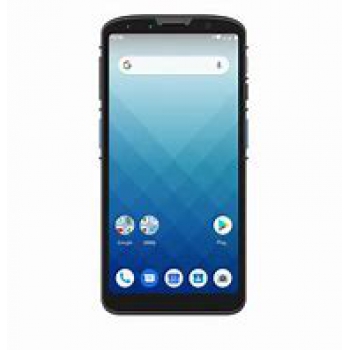

EA630

EA630 Specification

Operation System

  • OSAndroid 10
  • GMS certifiedGMS certified
  • CPU1.8GHz, Qualcomm® Snapdragon™ 636,
    64bits Octa-core Processor
  • Memory3 GB RAM / 32 GB Flash
  • Languages supportEnglish, Simplified Chinese, Traditional Chinese, Japanese,
    Spanish, German, French, Italian, Portuguese, Korean and
    multiple languages

Display

  • Screen Size6”, 18:9 Full-HD ( 2160 x 1080 ) color screen (450nits)
  • TouchpanelGorilla® 6 Glass with 5-point Capacitive Touch Panel, compatible with gloves and supports wet resistance

Camera

  • Camera16 MP Rear and Flash Light

Indicator Type

  • TypeLED, Speaker, Vibrator

Symbologies

  • 2D Barcodes1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code
    128, Code 32, Code 93, Codabar/NW7, Interleaved 2
    of 5, Matrix 2 of 5, MSI, Trioptic,
    2D : PDF417, MicroPDF417, GS1 Composite ,
    Code11, Aztec Code, Data Matrix, QR Code, Micro
    QR Code, MaxiCode, Han Xin Code, DOT Code
    Postal : Intelligent Mail Barcode, Postal-4i, Australian
    Post, Japanese Post, Netherlands (KIX) Post,
    Postnet, Planet Code
    OCR : OCR-A, OCR-B, E13B (MICR)

RFID

  • HF RFIDSupport HF/NFC
    Frequency 13.56Mhz
    Support: ISO14443A/B, ISO15693 standard

Communication

  • Bluetooth®Bluetooth® 5
  • WLANWireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz
    Support 802.11d/e/h/i/k/r/v, fast roaming
    Compliant with WEP, WPA and IEEE 802.11i WPA2
  • WWANGSM: 850,900,1800,1900 MHz
    WCDMA: Band 1, Band 2, Band 5, Band 8
    LTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B
    12/B17/B19/B20/B28)
    TDD-LTE (B38/B39/B40/B41)
    Dual nano SIM Slot
  • GPSAGPS, GPS, GLONASS, Beidou, Galileo, QZSS, SBAS
  • SensorsGyroscope, Light sensor, e-Compress, Proximity sensor,
    Accelerometer sensor, SAR sensor

I/O Interfaces

  • USBUSB 3.1 Type-C (Supports quick charging)
  • POGO PINYes, over USB Type-C
  • Expansion SlotMicroSD, up to 256 GB
  • AudioOne speaker (95±3dB @ 10cm), One receiver ,
    Dual noise-cancelling microphones

Enclosure

  • Dimensions ( W x D x H )157mm x 76.4mm x 13.9mm
  • Weight<230g

Durability

  • Drop Specification1.2m, 1.5m with boot case
  • SealingIP65
  • Vibration and Shock testMIL-STD 810G

Environmental

  • Operating temperature-10°C to 50°C
  • Storage temperature- 30°C to 70°C (without battery)
  • Relative Humidity10% ~ 90% (Non-Condensing)

Power Source

  • Main battery3.85V, 4000mAH Li-polymer battery

Software

  • MDM SoftwareSOTI, AirWatch and MoboLink

Regulatory Approvals

  • Regulatory ApprovalsCE, FCC, NCC, BSMI, VCCI, CCC, RoHS, CEC, BQB, N-Mark
    compliance.

Accessories

■ USB 3.0 type-C cable(Support Quick Charge) (PN#1550-905896G)
■ Quick charge adaptor via USB type-C cable (PN#1010-900054G US plug/ #1010-900055G EU plug)
■ Hand strap (PN#385935G)
■ Boot case (PN# 3210-900023G)
■ 9H glass screen protector (PN#401546G)
■ Battery 3.85V 4000mAh (PN#1400-900057G)
■ Stylus (PN# 384896G)
■ Coiled strap (PN# 383642G)
■ Single Slot Charging Cradle(PN# 5000-900072G)
■ Single Slot USB Cradle(PN# 5000-900070G)
■ Single Slot Ethernet Cradle(PN# 5000-900071G)
■ Adaptor with plugs for 1-slot cradle (PN#1010-900057G)
■ 4-Slot Terminal Charging cradle (PN#5000-900075G (US) , PN#5000-900076G (EU)
■ 4-Slot Ethernet cradle (PN#5000-900077G (US), PN#5000-900078G (EU)
■ Power supply for 4-slot cradle (PN# 1010-900032G(US), PN#1010-900031G(EU)
■ Standard gun grip (PN# 5500-900075G)
■ Standard gun grip for terminal with boot case (PN#5500-900076G)
■ 2D long-range gun grip (PN# 5500-900077G)
■ 2D long-range gun grip for terminal with boot case (PN# 5500-900078G)
■ RG630 UHF gun grip (PN# 5500-900079G (US), PN# 5500-900080G (EU)
■ RG630 UHF gun grip for terminal with boot case (PN# 5500-900081G (US), PN# 5500-900082G (EU)
