PM45

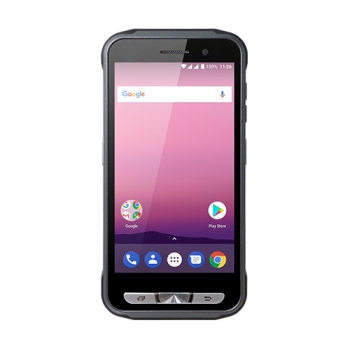

PM45 is a 5 inch screen smartphone for enterprise with a Qualcomm Octa-core processor, IEEE 802.11 a/b/g/n/ac, Bluetooth v4.2. This ultra rugged smartphone can stand up to 1.2m (4ft) along with IP67 water and dust protection.



SPECIFICATIONS OF PM45

Dimensions
With standard batt.: 154.8 x 77.7 x 13mm /
6.1 x 3.05 x 0.5in
With extended batt.: 154.8 x 77.7 x 19.4mm /
6.1 x 3.05 x 0.76in

Weight
With standard batt.: 190g / 6.7oz
With extended batt.: 250g / 8.3oz

Display
5.0", IPS panel (1080 x 1920 pixel) FHD
Daylight readable (500 nits typical)
Wide viewing angle

Touch Panel
Capacitive with Corning Gorilla glass®
Smooth operation using finger or
capacitive stylus pen
Glove touch

Power
Standard Battery: 2,900mAh Li-ion removable
Extended Battery: 5,800mAh Li-ion removable

Keypad
Front: Recent Apps, Home & Back
Right: Volume, Up/Down, Power
Left: Push-to-Talk ready All
hard keys (except power key and home
key) is user-assignable using EmKit

Audio Support
Supports VoIP
Built-in two microphone (Noise cancelling)
Loud speaker (Push to talk ready)
Receiver and headset jack (3.5mm)
Wireless bluetooth headset support
HAC (T3 & M3)

Standard Communications
USB2.0 OTG

Main-Processor
Qualcomm® Snapdragon, Octa-core, 1.8GHz

Operating System
Google Android(CTS & GMS certified): 7.1 Nougat
FOTA (Firmware Over The Air) update is
available via MS Azure Cloud

Memory and Storage
RAM: 3GB / 4GB (Optional)
ROM (NAND Flash): 32GB
Micro-SD: Micro-SD card slot supports
up to 32GB SDHC

Sensor
Gyroscope, Accelerometer, Light sensor,
Proximity sensor, E-compass

Operating Temperature
-20°C to 60°C / -4°F to 140°F

Storage Temperature
-25°C to 70°C / -13°F to 158°F

Humidity
95% Non-condensing

Drop
MIL-STD 810G for 1.2m on concrete (26
drops) at room temperature only

Water / Dust Proof (Sealing)
IP67

Electrostatic Discharge
±15 kV air discharge
±8 kV contact discharge



http://www.pointmobile.co.kr/item.php?it_id=1526884829&ca_id=303070









Camera
Rear: 13MP Aperture f/2.0 wide-angle AF
with LED flash
Front: 5.0MP

NFC (Near Field Communcation)
P2P NFC (13.56MHz HF RFID)
Supported TAG-ICs:
MIFARE® 1k/4k/Plus, MIFARE UltraLight
MIFARE UltraLight C, MIFARE DESFire
MIFARE DESFire EV1, ISO 14443 A & B

Global Positioning System
12 channel integrated GPS: assisted via WAN carrier:
accuracy within 3m, Stand-alone GPS available
support GLONASS

Wireless WAN
EDGE/GPRS/GSM: 850/900/1800/1900
WCDMA: B1/2/4/5/6/8/19
LTE FDD: B1/2/3/4/5/7/8/17/19/20
X9 LTE Cat7
Dual-SIM card slot

Wireless LAN
Radio: 802.11 a/b/g/n/ac., 802.11d, 802.11r/k/i/h,
IPv4, IPv6, 1X1 SISO
Data Rates: IEEE 802.11a/n: Up to 150 Mbps
IEEE 802.11ac: Up to 433 Mbps
Operating Channels: 1 to 13 (2412~2472MHz),
36 to 165 (5180~5825MHz)
Channel Bandwidth: 20, 40, 80 MHz
Security and Encryption: WEP(40 or 104bit)
WPA/WPA2 Personal(TKIP, AES);
WPA/WPA2 Enterprise(TKIP/AES) -
PEAP(MSCHAPv2, GTC),
TLS, TTLS(PAP, MSCHAP, MSCHAPv2, GTC),
PWD, SIM, AKA, AKA', LEAP
Fast Roam: PMKID Caching, Cisco CCKM, 802.11r

Wireless PAN
Bluetooth Class I, Ver.4.2 Low Energy

Regulatory Approvals and Compliance
Certified CE, CB, KC, RCM
Environmental: RoHS II, WEEE & REACH compliant

Enterprise Solution
Airwatch, MobiControl, Teamviewer

EmKit
Direct Clone: Create the Master PDA -
backup your system settings and apps
into a secured file. Without any network
connection, Master PDA become a local
server in your work place. Nearby Point
Mobile device will automatically communicate
with Master PDA and download the backup file
and then Restore.
LogTrace: Network log taking tool.
Scan2Set: Restore direct clone file from the
network environment such as Web server, FTP
and Google Drive. Just simply read the QRcode.
System Information: SW and HW information
of your PM45.
Take Bug Report: System logs and events taking tool.

Warranty
Subject to the Terms and Conditions, PM45
carries 1 (one) year-warranty period from the
date of purchase against the defective
materials and manufacturing defects. Point
Special and Premium Care service is
recommended.
