PM80HC

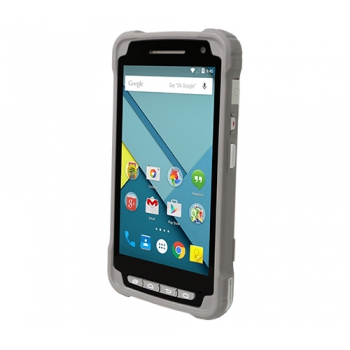

RUGGED SMART PHONE PM80HC

PM80HC is 5 inch screen full touch mobile terminal with Qualcomm up to 1.4 GHz Quad core, IEEE 802.11 a/b/g/n, optional 2D imager, Bluetooth v4.0. This stylish mobile terminal can stand up to 1.2m (4ft) along with IP54 water and dust protection.



Specifications Of PM80HC



Physical characteristics
Dimensions: 156 x 82 x 21mm (6.1x3.2x0.8 in)
Weight: 279g (9.8oz) with Standard battery

Environmental
Operating: -20°C to 60°C (-4°F to 140°F)
Storage: -25°C to 70°C (-13°F to 158°F)
Relative Humidity: Non-condensing, 95%
Rain & Dust Proof: IP54
Drop: Multiple 1.2m (3.9 ft) drops per
MIL-STD 810G to concrete.
Tumble: 150cycle (300hit) @ 1m (3.3ft)
ESD: 15 kV air, 8 kV contact

Power
Standard Battery: 3,000mAh Li-ion rechargeable
Extended Battery: 4,000mAh Li-ion rechargeable

Operating System
Google Android 5.0 Lollipop
(CTS & GMS is certified)
Windows 10 IoT Enterprise Mobile

Micro-Processor
Qualcomm MSM8916 up to1.4GHz Quad-core

Memory and Storage
Memory: 2GB RAM
ROM: 16GB NAND Flash
User-accessible micro-SD cards up to 32GB SDHC

Display
5.0 in, IPS panel, 720 x 1280 pixel (HD)
Corning Gorilla Glass 3, Daylight readable,
Wideviewing angle, Capacitive touch, Anti-raindrop

Standard Communications
Full speed USB 2.0 from either cradle or
USB direct sync cable

Camera
8.0MP(Rear) with LED flash and 2.0MP(Front)

Keypad Options
4 physical keys (Recent Apps, Home, Back &
Programmable)

Sensors
Gyroscope, Accelerometer, Light Sensor &
Proximity Sensor.

Wireless WAN
EDGE/GPRS/GSM:850/900/1800/1900
WCDMA: 850/900/1900/1700/2100 MHz
LTE: FDD2, FDD3, FDD4, FDD5, FDD13, FDD17



Wireless LAN
IEEE 802.11 a/b/g/n Data rates: up to 150 Mbps
Operating channels: 1 to 13 (2.4Ghz & 5Ghz),
36 to 165(5GHz), CCX v4
Regulatory compliance: As per IEEE 802.11n
Security: WEP / WPA / WPA2 and more
Authentication: PEAP/MS-CHAPv2, EAP-TLS

Wireless PAN
Integrated Bluetooth Class II, Ver.4.0
Operating channels: 0 to 78 (2402-2480 Mhz)
Data Rates: 1, 2, 3 Mbps   Global Positioning System
12 channel integrated GPS: assisted via
WAN carrier: accuracy within 3m,
Stand-alone GPS available support GLONASS

NFC (Near Field Communcation)
P2P NFC with 1 SAM slot (13.56Mhz HF RFID)
Supported Tag-Ics : MIFARE® 1k/4k/Plus,
MIFARE UltraLight, MIFARE UltraLight C,
MIFARE DESFire, MIFARE DESFire EV1,
ISO 14443 A & B

Magnetic Stripe Reader (Optional)
3 track MSR with water proof sealed.
ANSI / ISO7813 standard, Encrypted

Integrated Barcode Reader
1D/2D Imager : supporting all 1D/2D standard
Symbology including GS1 Databar

LED Indicator and Scan Alert
Indicator: 2 x dual color LEDs on front:
1) Power, 2)Warning, 3)Scan reading
Scan Alert: Vibration

Audio Support
Supports VoIP, Built-in two microphone (Noisecancelling),
speaker, receiver and headset jack (3.5mm), Wireless Bluetooth headset support

Accessories
Standard accessories: AC/DC power adaptor &
country plug, Stylus pen & tether, Wrist Landyard,
Battery, LCD protection film
Optional accessories: Single-slot cradle, 4-slot Cradle,
Extended battery, 4-slot Battery Charger,
I/O sync USB Cable, Vehicle mount charging cradle,
Cigar jack charger

Regulatory Approvals and Compliance
Certificated CE & GCF, ,FCC & PTCRB,IC,
CCC & SRRC & NAL ,KC, TELEC & JATE, CB,RCM
Environmental: RoHS II & WEEE compliant
