PM80

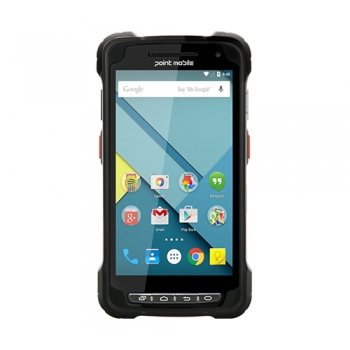

RUGGED SMART PHONE PM80

PM80 is 5 inch screen full touch mobile terminal with Qualcomm up to 1.2 GHz Quad core, IEEE 802.11 a/b/g/n, optional 2D imager, Bluetooth v4.0. This stylish mobile terminal can stand up to 1.5m (5ft) along with IP67 water and dust protection.



Specifications Of PM80

Physical characteristics
Dimensions:
156 x 82 x 21mm / 6.1x3.2x0.8 in (Without MSR)
156 x 82 x 22mm / 6.1x3.2x0.9 in (With MSR)
Weight: 279g / 9.8oz (Without MSR),
293g / 10oz (With MSR) including battery

Environmental
Operating: -20°C to 60°C (-4°F to 140°F)
Storage: -40°C to 70°C (-40°F to 158°F)
Relative Humidity: Non-condensing, 95%
Rain & Dust Proof: IP67
Drop: 1.5m (5ft) per MIL-STD 810G
at all operating temperature
Tumble: 250cycle (500hit) @ 1m (3.3ft)
ESD: 15 kV air, 8 kV contact

Power
Standard Battery: 3,000mAh Li-ion rechargeable
Extended Battery: 4,000mAh Li-ion rechargeable

Operating System
Google Android 6.0.1 Marshmallow
(CTS & GMS is certified)
Windows 10 IoT Enterprise Mobile

Micro-Processor
Qualcomm MSM8916 @ 1.2GHz Quad-core

Memory and Storage
RAM: 2GB
ROM: 16GB
NAND Flash User-accessible
micro-SD cards up to 32GB SDHC

Display
5.0 in, IPS panel, 720 x 1280 pixel (HD)
Corning Gorilla Glass®, Daylight readable
(500 nits typical), Wideviewing angle,
Capacitive touch, Anti-raindrop

Standard Communications
Full speed USB 2.0 from either cradle or
USB direct sync cable

Camera
8.0MP(Rear) with LED flash and 2.0MP(Front)

Keypad Options
4 physical keys (Recent Apps, Home, Back &
Programmable)

Sensors
Gyroscope, Accelerometer, Light Sensor & Proximity Sensor.

Wireless WAN
EDGE/GPRS/GSM:850/900/1800/1900
WCDMA: 850/900/1900/1700/2100 MHz
LTE: FDD2, FDD3, FDD4, FDD5, FDD13, FDD17








Wireless LAN
Radio : IEEE 802.11a/b/g/n/d/h/i/k/r/v, IPv4, IPv6, 1X1 SISO.
IEEE 802.11a/n Data Rates: Up to 150 Mbps;
IEEE 802.11b/g/n Data Rates: Up to 72.2 Mbps
Operating Channels: 1 to 13 (2412~2472MHz),
36 to 165 (5180~5825MHz)
Channel Bandwidth : 20, 40 MHz
Security and Encryption : WEP(40 or 104bit)
WPA/WPA2 Personal(TKIP, AES);
WPA/WPA2 Enterprise(TKIP/AES) - PEAP(MSCHAPv2, GTC),
TLS, TTLS(PAP, MSCHAP, MSCHAPv2, GTC), PWD, SIM,
AKA, AKA', FAST(MSCHAPv2, GTC), LEAP
Fast Roam : PMKID Caching : Cisco CCKM, 802.11r

Wireless PAN
Integrated Bluetooth Class II, Ver.4.0
Operating channels: 0 to 78 (2402-2480 Mhz)
Data Rates: 1, 2, 3 Mbps

Global Positioning System
12 channel integrated GPS: assisted via WAN carrier:
accuracy within 3m, Stand-alone GPS available
support GLONASS

NFC (Near Field Communcation)
P2P NFC with 1 SAM slot (13.56Mhz HF RFID)
Supported Tag-Ics : MIFARE® 1k/4k/Plus,
MIFARE UltraLight, MIFARE UltraLight C,
MIFARE DESFire, MIFARE DESFire EV1,
ISO 14443 A & B

Magnetic Stripe Reader (Optional)
3 track MSR with water proof sealed.
ANSI / ISO7813 standard, Encrypted

Integrated Barcode Reader
1D/2D Imager : supporting all 1D/2D standard
Symbology including GS1 Databar

LED Indicator and Scan Alert
Indicator: 2 x dual color LEDs on front:
1) Power, 2)Warning, 3)Scan reading
Scan Alert: Vibration

Audio Support
Supports VoIP, Built-in two microphone (Noisecancelling),
speaker, receiver and headset jack (3.5mm), Wireless Bluetooth headset support

Accessories
Standard accessories: AC/DC power adaptor &
country plug, Capacitive Stylus pen & tether,
Hand strap, Battery, LCD protection film
Optional accessories: Single-slot cradle,
4-slot Cradle, Extended battery, 4-slot Battery Charger,
USB sync cable, Vehicle mount

Regulatory Approvals and Compliance
Certified CE & GCF, FCC & PTCRB (GCF test
report), IC, ANATEL, CCC & SRRC & NAL ,KC,
TELEC & JATE, CB,RCM
Environmental: RoHS II & WEEE compliant

Enterprise Solution
SOTI, Airwatch, Teamviewer

EmKit
Power Launcher: Kiosk mode with system
restriction Allows admin to restrict
operator's access to system settings,
MTP connection and screen capture
Direct Clone: Master PDA becomes a
local server for a nearby Point Mobile
device to automatically communicate and
download/restore backup files
Scan2Set: Unique two-step feature for
Point Mobile Android models that enables
the fastest device deployment right out of
the box
